T-REX-4-6KLP1G01 Hybrid
T-REX-4-6KLP1G01 Hybrid
Felicity solar
T-REX-5KLP1G01
T-REX-6KLP1G01
Overview › RS485


RS485/COM port

Use an RS485 cable cable plugged into the inverter port labelled "RS485" which is located at the bottom of the inverter. You can read more about the communication chips we recommend using here.

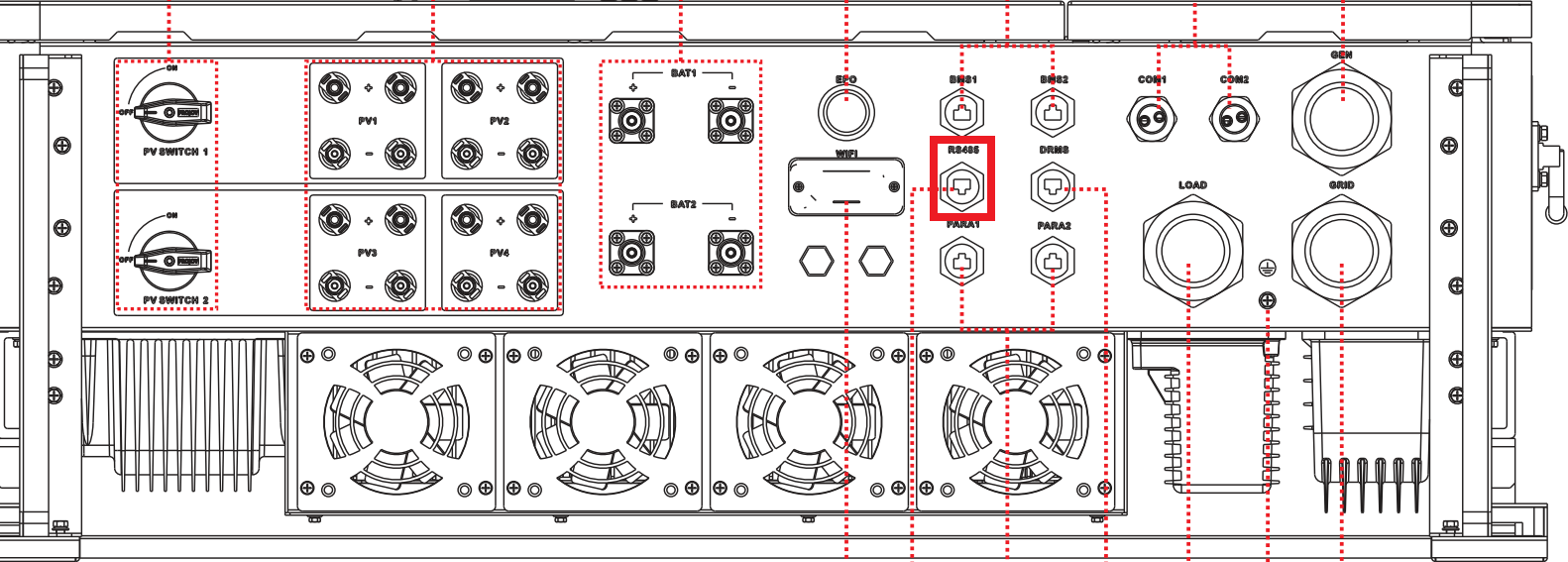

Felicity T-Rex RS485 port

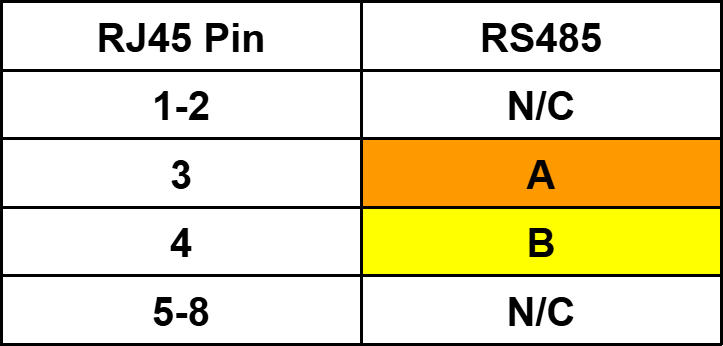

Pin 1-
Pin 2-
Pin 3RS485A
Pin 4RS485B
Pin 5RS485A
Pin 6RS485B
Pin 7-
Pin 8-

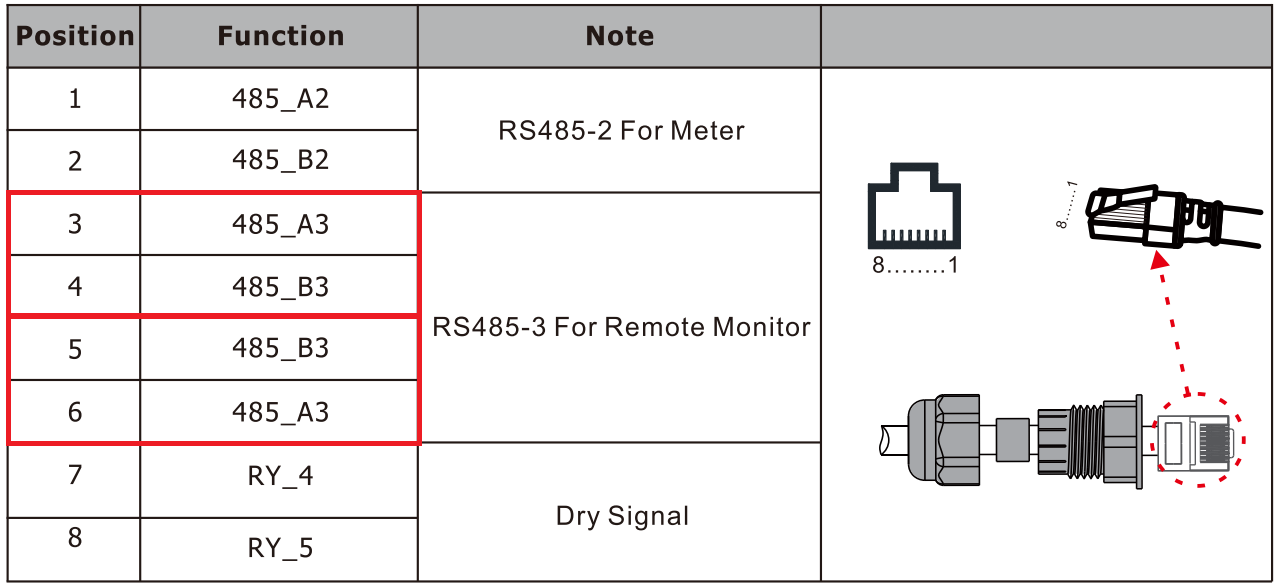

Felicity T-Rex RS485 pins

Steps in SolarAssistant

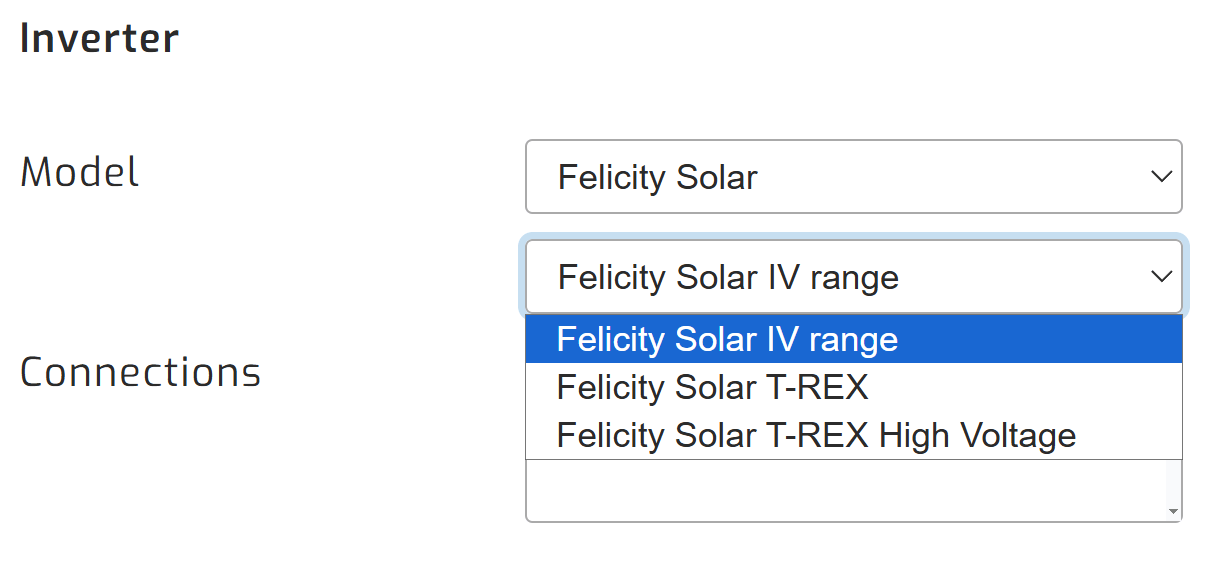

On the configuration page, select "Felicity Solar T-Rex" as your inverter model.

SolarAssistant felicity inverter selection

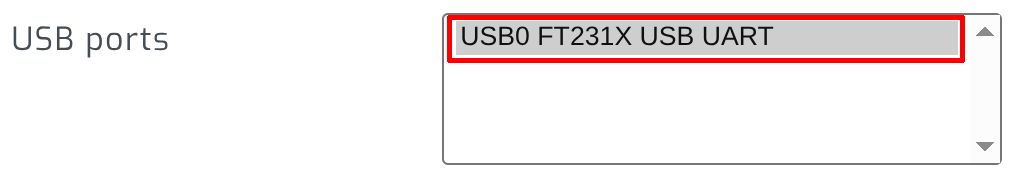

Select the USB port(s) where you have Felicity Solar inverters connected.

Select felicity USB ports

Click connect:

Select connect

Parallel installations

With Felicity Solar inverters you will need to connect each inverter with its own cable.
